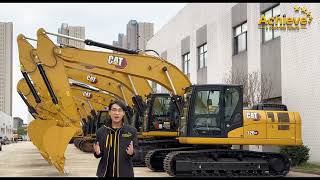

Caterpillar Crawler excavator Caterpillar Medium Excavators 320Tier3 NEW 202 Kettenbagger

Engine
Net Power - ISO 9249 172 hp
Net Power - ISO 9249 (DIN) 175 hp (metric)
Engine Model Cat® C4.4
Engine Power - ISO 14396 174 hp
Engine Power - ISO 14396 (DIN) 176 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 269 in³
Biodiesel Capability Up to B20¹
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Weights
Operating Weight 49,800 lb
Note Reach boom, R2.9 (9'6") stick, Heavy Duty (HD) 1.19 m³ (1.56 yd³) bucket 790 mm (31") triple grouser shoes, 4200 kg (10,400 lb) counterweight.
Working Ranges and Forces
Maximum Digging Depth 22 ft
Boom Reach 5.7 m (18'8")
Stick Reach 2.9 m (9'6")
Bucket 1.19 m ³ (1.56 yd³)
Maximum Reach at Ground Level 32.3 ft
Maximum Cutting Height 30.7 ft
Maximum Loading Height 21.3 ft
Minimum Loading Height 7.1 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 21.5 ft
Maximum Vertical Wall Digging Depth 17 ft
Bucket Digging Force - ISO 38811 lbf
Stick Digging Force - ISO 23911 lbf
Hydraulic System
Main System - Maximum Flow 429 l/min (113 gal/min)
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Equipment - Lift Mode 5510 psi
Maximum Pressure - Travel 4974 psi
Maximum Pressure - Swing 3988 psi
Swing Mechanism
Swing Speed 11.25 r/min
Note (1) For CE-marked machine default value may be set lower.
Maximum Swing Torque 60300 lbf·ft
Service Refill Capacities
Fuel Tank Capacity 86.6 gal (US)
Cooling System 6.6 gal (US)
Engine Oil 4 gal (US)
Swing Drive 1.6 gal (US)
Final Drive - Each 1.1 gal (US)
Hydraulic System - Including Tank 61.8 gal (US)
Hydraulic Tank 30.4 gal (US)
DEF Tank 10.3 gal (US)
Dimensions
Boom Reach 5.7 m (18'8")
Stick Reach 2.9 m (9'6")
Bucket 1.19 m ³ (1.56 yd³)
Shipping Height - Top of Cab 9.7 ft
Handrail Height 9.7 ft
Shipping Length 31.3 ft
Tail Swing Radius 9.3 ft
Counterweight Clearance 3.4 ft
Ground Clearance 1.5 ft
Track Length 14.6 ft
Length to Center of Rollers 11.7 ft
Track Gauge 7.8 ft
Transport Width 9.8 ft
Air Conditioning System
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg (1.9 lb) of refrigerant which has a CO2 equivalent of 1.216 metric tonnes (1.340 tons).
Sustainability
Recyclability 97%
